Multi-class Classification Using Softmax Regression

import numpy as np
import pandas as pd
import matplotlib as mpl
import matplotlib.pyplot as plt
from matplotlib.colors import ListedColormap

import torch
import torch.nn as nn
import torch.nn.functional as F

from sklearn.metrics import confusion_matrix

cmap = plt.get_cmap('tab10')
colors = [cmap(i) for i in range(cmap.N)]

mpl.rcParams["font.size"] = 24
mpl.rcParams["lines.linewidth"] = 2

device = "cuda" if torch.cuda.is_available() else "cpu"
print("Device:", device)

#import os
#os.environ["KMP_DUPLICATE_LIB_OK"]="TRUE"

Device: cpu

Load Dataset

!python -m wget https://raw.githubusercontent.com/deepchem/deepchem/master/datasets/delaney-processed.csv \
    --output delaney-processed.csv

DELANEY_FILE = "delaney-processed.csv"
TASK_COL = 'measured log solubility in mols per litre'
df = pd.read_csv(DELANEY_FILE)
print(f"Number of molecules in the dataset: {df.shape[0]}")

Number of molecules in the dataset: 1128

Input data

X: input feature values Y: True labels

def assign_label(x):
    if x >= -2:
        return 0
    elif x < -2 and x >= -4:
        return 1
    else:
        return 2

df["soluble"] = df[TASK_COL].apply(assign_label)


n_class = 3
X = df[[
        "Molecular Weight",
        "Polar Surface Area"]].values
onehot = np.eye(n_class)
Y = df["soluble"].values
Y_onehot = onehot[Y]
Y = Y_onehot
print("Shape of X:", X.shape)
print("Shape of Y:", Y.shape)

Shape of X: (1128, 2)
Shape of Y: (1128, 3)

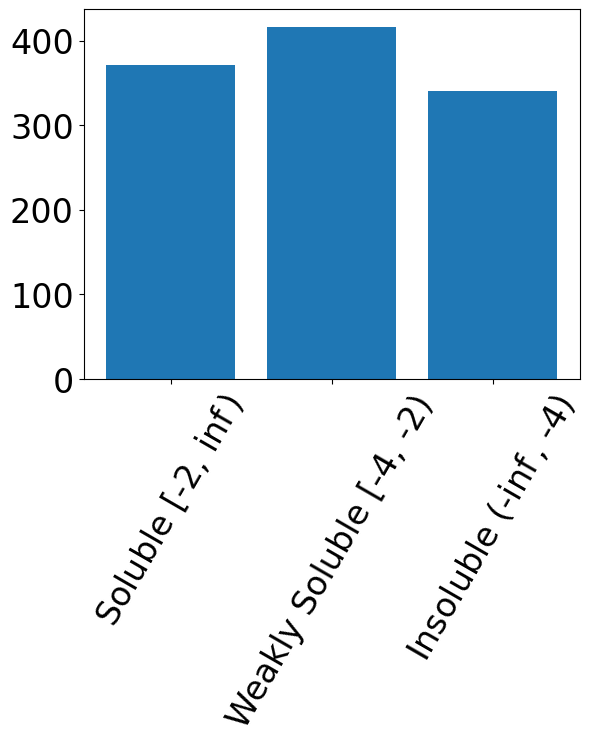

plt.bar(range(n_class), np.sum(Y, axis=0))
plt.xticks(range(n_class), [r"Soluble [-2, $\inf$)",
                            "Weakly Soluble [-4, -2)",
                            r"Insoluble (-$\inf$, -4)"], rotation=60)

([<matplotlib.axis.XTick at 0x78f7bf94c0b0>,
  <matplotlib.axis.XTick at 0x78f7c293f320>,
  <matplotlib.axis.XTick at 0x78f7bfb4a0f0>],
 [Text(0, 0, 'Soluble [-2, $\\inf$)'),
  Text(1, 0, 'Weakly Soluble [-4, -2)'),
  Text(2, 0, 'Insoluble (-$\\inf$, -4)')])

from sklearn.model_selection import train_test_split

# training/validation dataset
test_size = int(len(X)*0.1)
X_train, X_test, y_train, y_test = train_test_split(X, Y, test_size=test_size, shuffle=True)

# create dataloaders
X_train, X_test, y_train, y_test = map(torch.tensor, (X_train, X_test, y_train, y_test))
batch_size = 128 #batch size in minibatch gradient descent
train_data = torch.utils.data.TensorDataset(X_train, y_train)
train_loader = torch.utils.data.DataLoader(train_data, batch_size=batch_size,
                                           shuffle=True, drop_last=False)
test_data = torch.utils.data.TensorDataset(X_test, y_test)
test_loader = torch.utils.data.DataLoader(test_data, batch_size=batch_size,
                                          shuffle=False, drop_last=False)

Training Utils

# Define linear regression model
class LinearRegresion(torch.nn.Module):
    def __init__(self, indim, outdim):
        super(LinearRegresion, self).__init__()
        self.norm = nn.BatchNorm1d(indim)
        self.linear = torch.nn.Linear(indim, outdim)
    def forward(self, x):
        x = self.norm(x)
        x = self.linear(x)
        return x

def train_one_epcoh(model, criterion, optimizer, dataloader):
    losses = []
    model.train()
    for x, y_true in dataloader:
        if device == "cuda":
            x, y_true = x.to(device), y_true.to(device)
        x, y_true = x.float(), y_true.float()
        optimizer.zero_grad()
        y_pred = model(x) # we will choose linear regression model for forward propagation
        y_pred = nn.Softmax(dim=-1)(y_pred)
        loss = criterion(y_pred, y_true)
        loss.backward() #backprogatation
        optimizer.step() #backprogatation
        losses.append(loss.cpu().detach().item())
    return losses

# no backpropagation in the validation/testing runs
def val_one_epcoh(model, criterion, dataloader):
    losses = []
    model.eval()
    with torch.no_grad():
        for x, y_true in dataloader:
            if device == "cuda":
                x, y_true = x.to(device), y_true.to(device)
            x, y_true = x.float(), y_true.float()
            y_pred = model(x)
            y_pred = nn.Softmax(dim=-1)(y_pred)
            loss = criterion(y_pred, y_true)
            losses.append(loss.cpu().detach().item())
    return losses

Training Softmax Regression models

model = LinearRegresion(X.shape[-1], n_class)
model = model.to(device)
model = model.float()
criterion = torch.nn.CrossEntropyLoss()
optimizer = torch.optim.SGD(model.parameters(), lr=0.05) #learning rate: lr
n_epochs = 1000

train_loss = []
val_loss = []

for epoch in range(n_epochs):
    losses = train_one_epcoh(model, criterion, optimizer, train_loader)
    train_loss.append(np.mean(losses))
    losses = val_one_epcoh(model, criterion, test_loader)
    val_loss.append(np.mean(losses))

Plotting training Curve

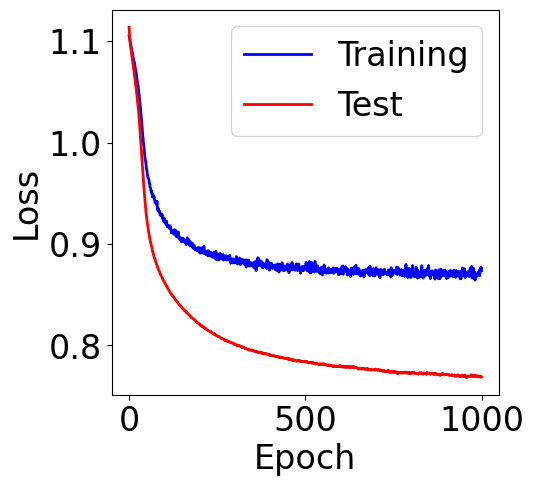

f, ax = plt.subplots(1, 1, figsize=(5,5))

ax.plot(train_loss, c="blue", label="Training")
ax.plot(val_loss, c="red", label="Test")
plt.xlabel("Epoch")
plt.ylabel("Loss")
plt.legend()

<matplotlib.legend.Legend at 0x78f7bf9a0290>

Visualize Decision Boundaries

# grid data for visualization
x_min, x_max = X_train[:, 0].min(), X_train[:, 0].max()
y_min, y_max = X_train[:, 1].min(), X_train[:, 1].max()

x_min = x_min.item()
y_min = y_min.item()
x_max = x_max.item()
y_max = y_max.item()

xx = np.linspace(x_min, x_max, 100)
yy = np.linspace(y_min, y_max, 100)

xx, yy = np.meshgrid(xx, yy)
grids = np.hstack([xx.ravel().reshape(-1, 1), yy.ravel().reshape(-1, 1)])

grid_data = torch.utils.data.TensorDataset(
    torch.tensor(grids).float()
)
grid_loader = torch.utils.data.DataLoader(grid_data, batch_size=batch_size,
                                          shuffle=False, drop_last=False)

predictions = []
model.eval()
with torch.no_grad():
    for x, in grid_loader:
        if device == "cuda":
            x = x.to(device)
        x = x.float()
        y_pred = model(x)
        y_pred = nn.Softmax(dim=-1)(y_pred)
        y_pred = torch.argmax(y_pred, dim=-1)
        predictions.extend([y_pred[i].item() for i in range(len(y_pred))])

# plot space separation
fig, ax = plt.subplots(1, 1, figsize=(5, 5))

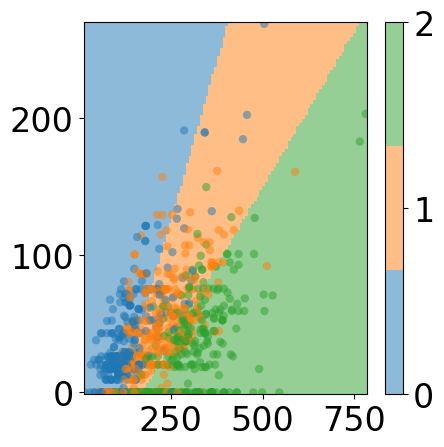

custom_cmap = ListedColormap([cmap(0), cmap(1), cmap(2)])
mesh_pred = np.array(predictions).reshape(xx.shape)
plt.pcolormesh(xx, yy, mesh_pred,
              cmap=custom_cmap, alpha=0.5)
plt.scatter([v.item() for v in X_train[:, 0]], [v.item() for v in X_train[:, -1]],
            c=[torch.argmax(y_train[i]).item() for i in range(len(y_train))], cmap=custom_cmap,
            edgecolors='none', alpha=0.5)
cbar = plt.colorbar(ticks=[0, 1, 2])
# plt.title("Training Data and Decision Boundary")
fig.tight_layout()

# plot space separation

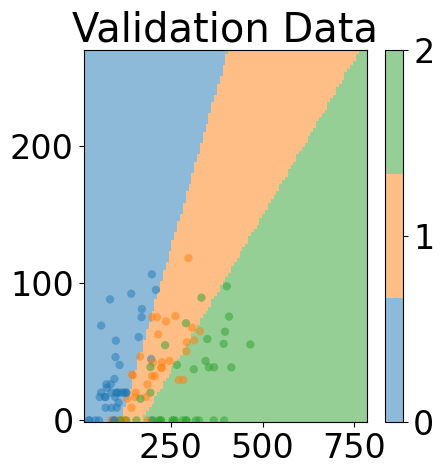

fig, ax = plt.subplots(1, 1, figsize=(5, 5))

custom_cmap = ListedColormap([cmap(0), cmap(1), cmap(2)])
mesh_pred = np.array(predictions).reshape(xx.shape)
plt.pcolormesh(xx, yy, mesh_pred,
              cmap=custom_cmap, alpha=0.5)
plt.scatter([v.item() for v in X_test[:, 0]], [v.item() for v in X_test[:, -1]],
           c=[torch.argmax(y_test[i]).item() for i in range(len(y_test))], cmap=custom_cmap,
            edgecolors='none', alpha=0.5)
cbar = plt.colorbar(ticks=[0, 1, 2])
fig.tight_layout()
plt.title("Validation Data")

Text(0.5, 1.0, 'Validation Data')

Confusion Matrix

y_test_pred = []
y_test_true = []
model.eval()
with torch.no_grad():
    for x,y in test_loader:
        if device == "cuda":
            x = x.to(device)
        x = x.float()
        y_test_true.extend([torch.argmax(y[i]).item() for i in range(len(y))])
        y_pred = model(x)
        y_pred = nn.Softmax(dim=-1)(y_pred)
        y_pred = torch.argmax(y_pred, dim=-1)
        y_test_pred.extend([y_pred[i].item() for i in range(len(y_pred))])

confusion_matrix(y_test_true, y_test_pred)

array([[38,  1,  1],
       [ 7, 24,  6],
       [ 1,  8, 26]])

AUROC

from sklearn.metrics import RocCurveDisplay
colors = [cmap(0), cmap(1), cmap(2)]
target_names = {
    0: r"Soluble",
    1: "Weakly Soluble ",
    2: r"Insoluble"
}

fig, ax = plt.subplots(1, 1, figsize=(5, 5))

for class_id, color in zip(range(n_class), colors):
    RocCurveDisplay.from_predictions(
        np.array(y_test_true)==class_id,
        np.array(y_test_pred)==class_id,
        name=f"{target_names[class_id]}",
        color=color,
        ax=ax,
    )
_ = ax.set(
    xlabel="False Positive Rate",
    ylabel="True Positive Rate",
)

ax.legend(bbox_to_anchor=(1.3, 1))

<matplotlib.legend.Legend at 0x78f7ad007b90>
